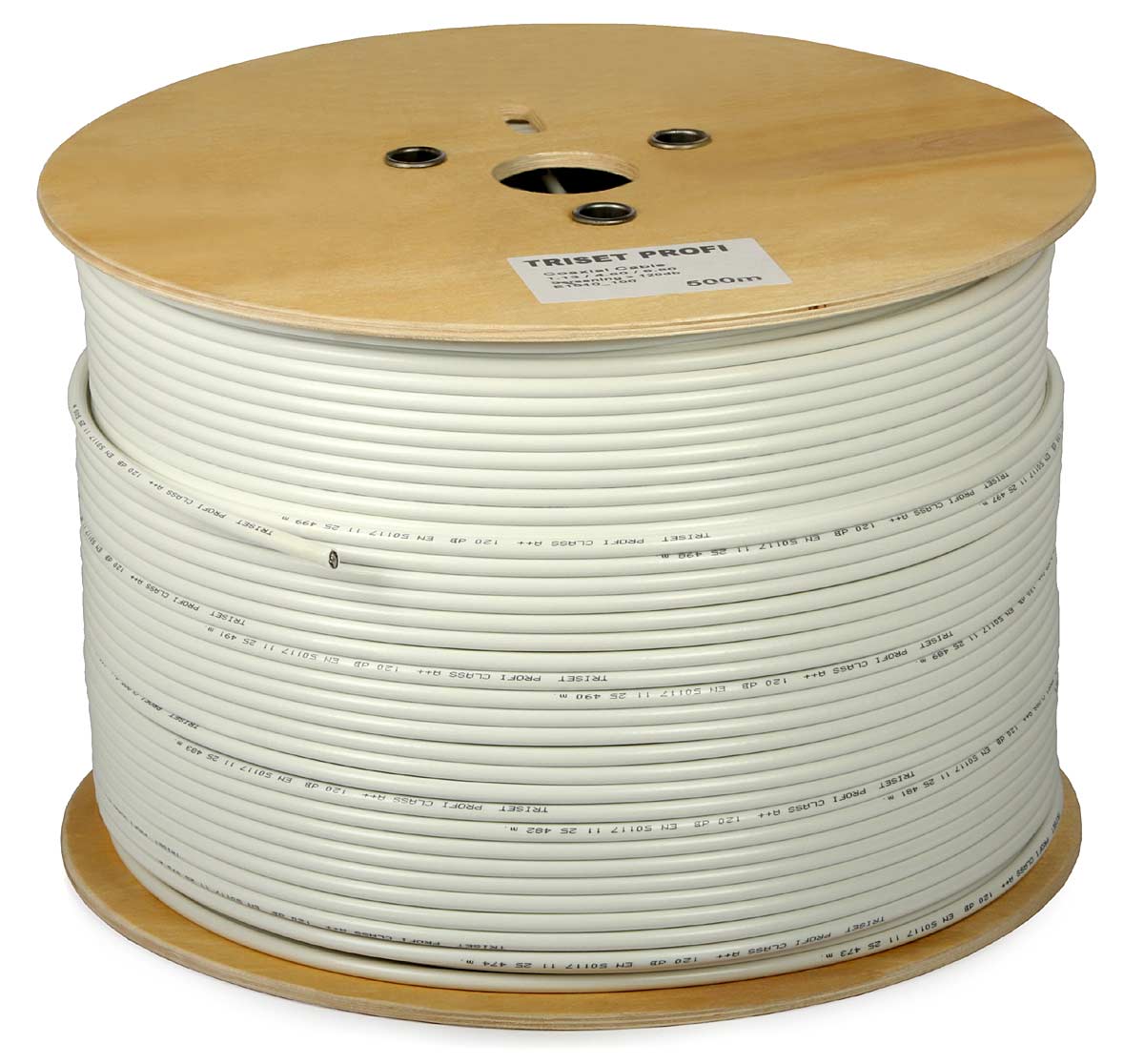

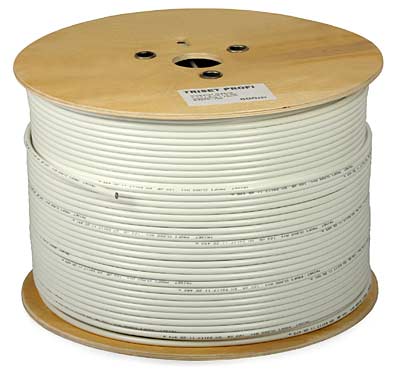

The spool with the cable (500 m)

The cable is sold in the quantities:

• 100 m E1010_100,
• 500 m E1010_500.

Close-up of the cable with exposed double foil and tinned copper braid

High quality coaxial cable used in individual terrestrial and satellite antenna installations, and MATV/SMATV/CATV systems, especially recommended for SMATV systems based on multiswitches and for cable TV networks.

The TRISET family of coaxial cables gained the Product of the Year award
in "Accessories" category at SatKrak 2007 exhibition

Distinguishing features:

RoHS compliance declaration.

PROFI TRISET E1010 cable has been designed for broadband networks. Due to its construction (double foil, tinned copper braid with a high degree of coverage), it ensures very high screening efficiency in the return channel band - 120 dB. This feature is especially important in HFC/CATV networks providing access to the Internet.

High screening efficiency (>105 dB) in the 1000-2000 MHz range makes this cable ideal for large multiswitch systems with many cables running in parallel. The core of the cable (diameter of 1.13 mm) is made of copper, which guarantees low loss, resistance to corrosion, and flexibility. The tinned copper braid provides resistance to oxidation and increases the lifetime of the cable compared to solutions based on aluminum shielding.

The cable is manufactured under strict technological discipline, with tight tolerances.

According to EN50117 norm, there are the next classes of coaxial cables, depending on screening efficiency: C, B, A, A+, A++.

TRISET PROFI meets the requirements for A++ class in the whole operational range (30-3000 MHz).

Screening efficiency of PROFI TRISET cable in 30-2400 MHz range and the requirement for A++ class
