Kamery
Standartní
Day/Night Box Camera: u-cam 600 (600TVL, Sony Super Had II, 0.01 lx)
Kód zboží: M11185
Cena s DPH
Sleva
Množství
2368,56 Kč
0 %

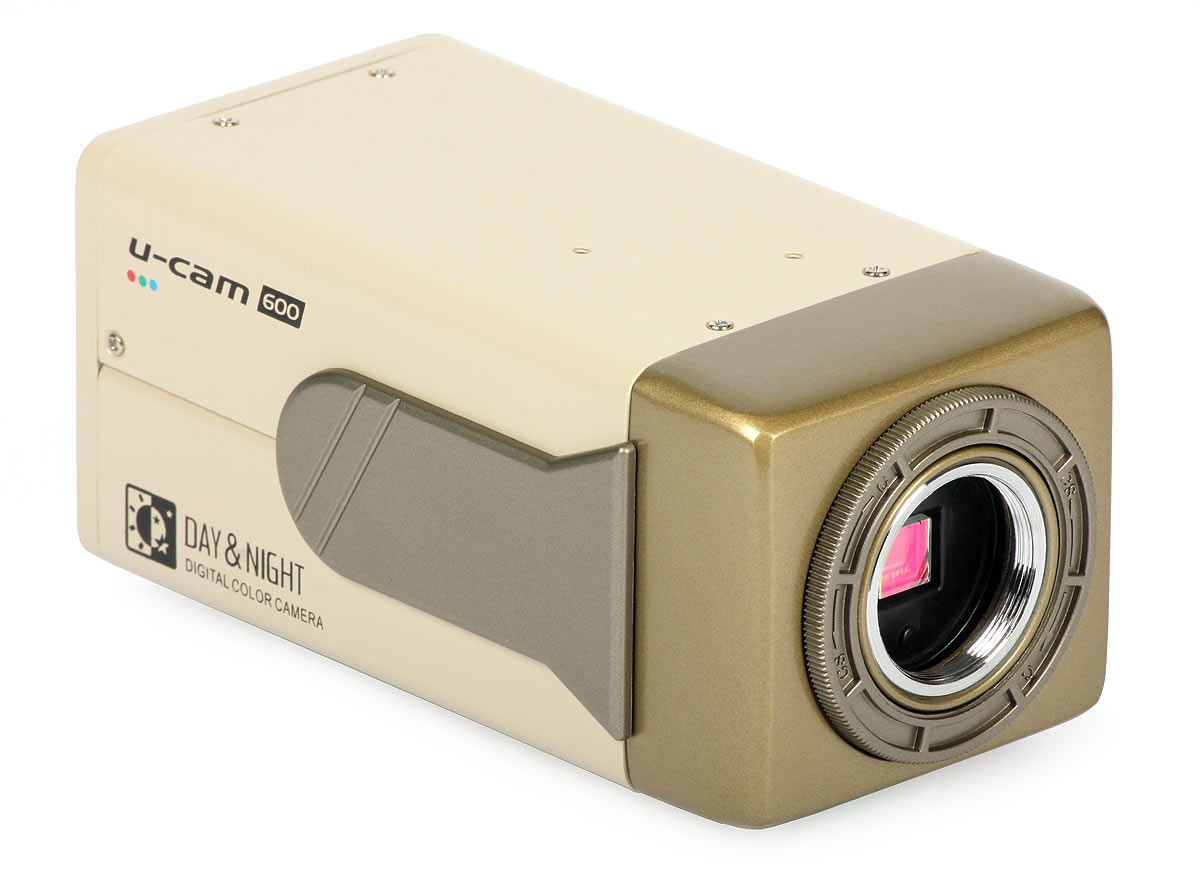

View of the camera

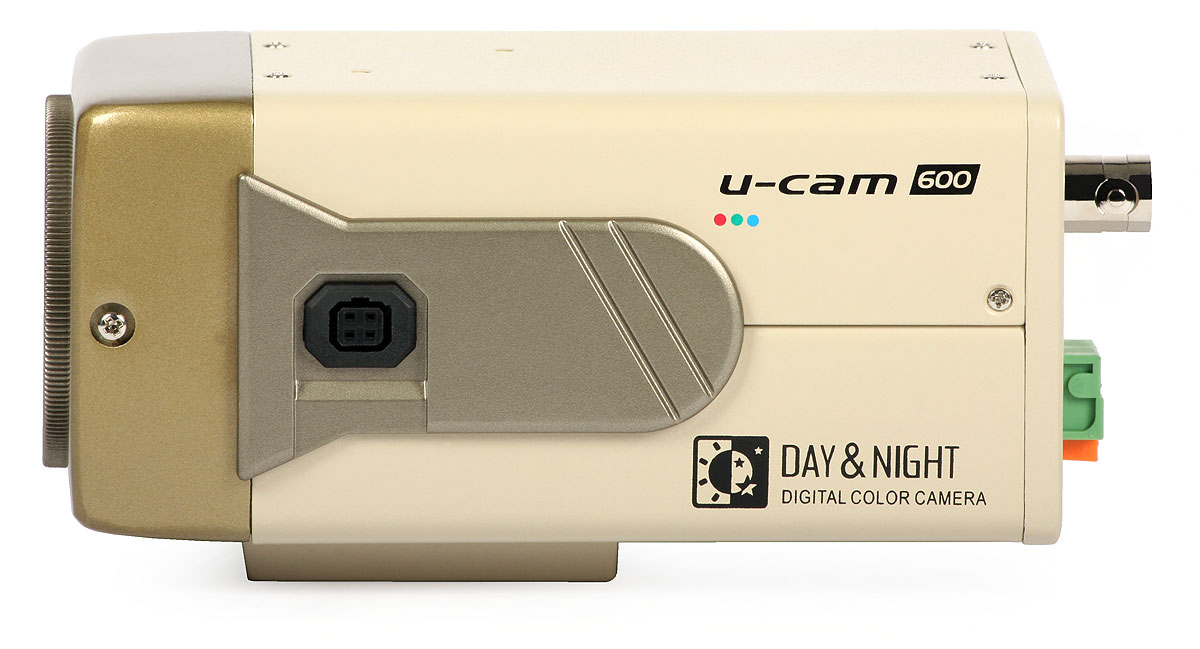

Side view

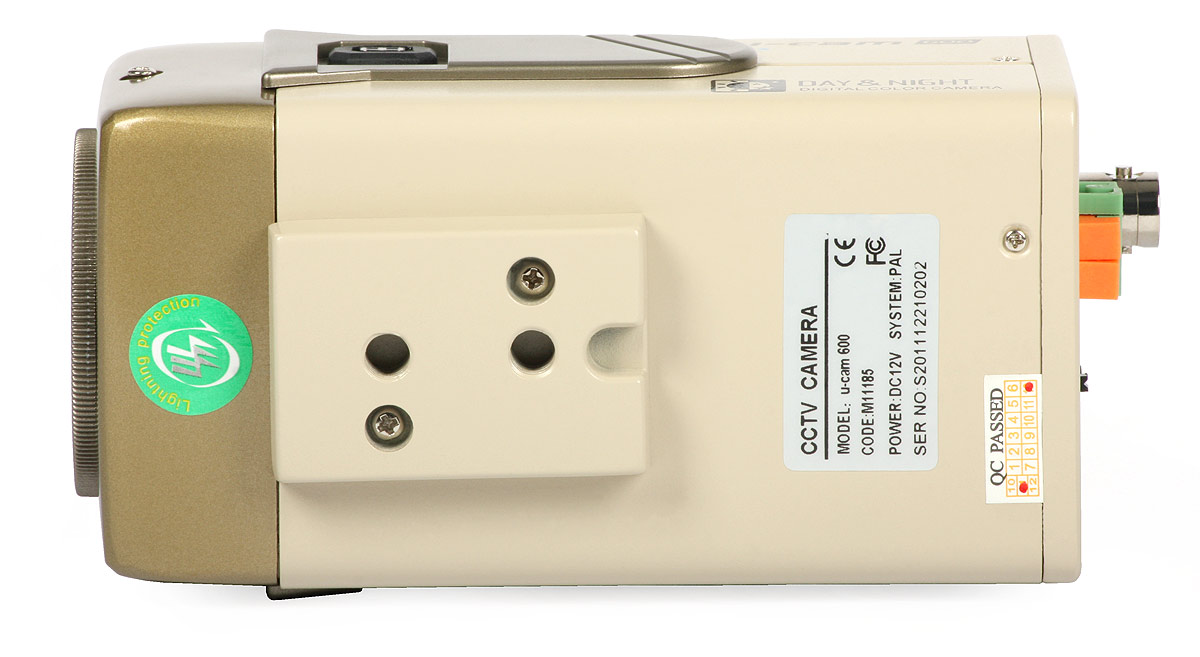

Bottom view

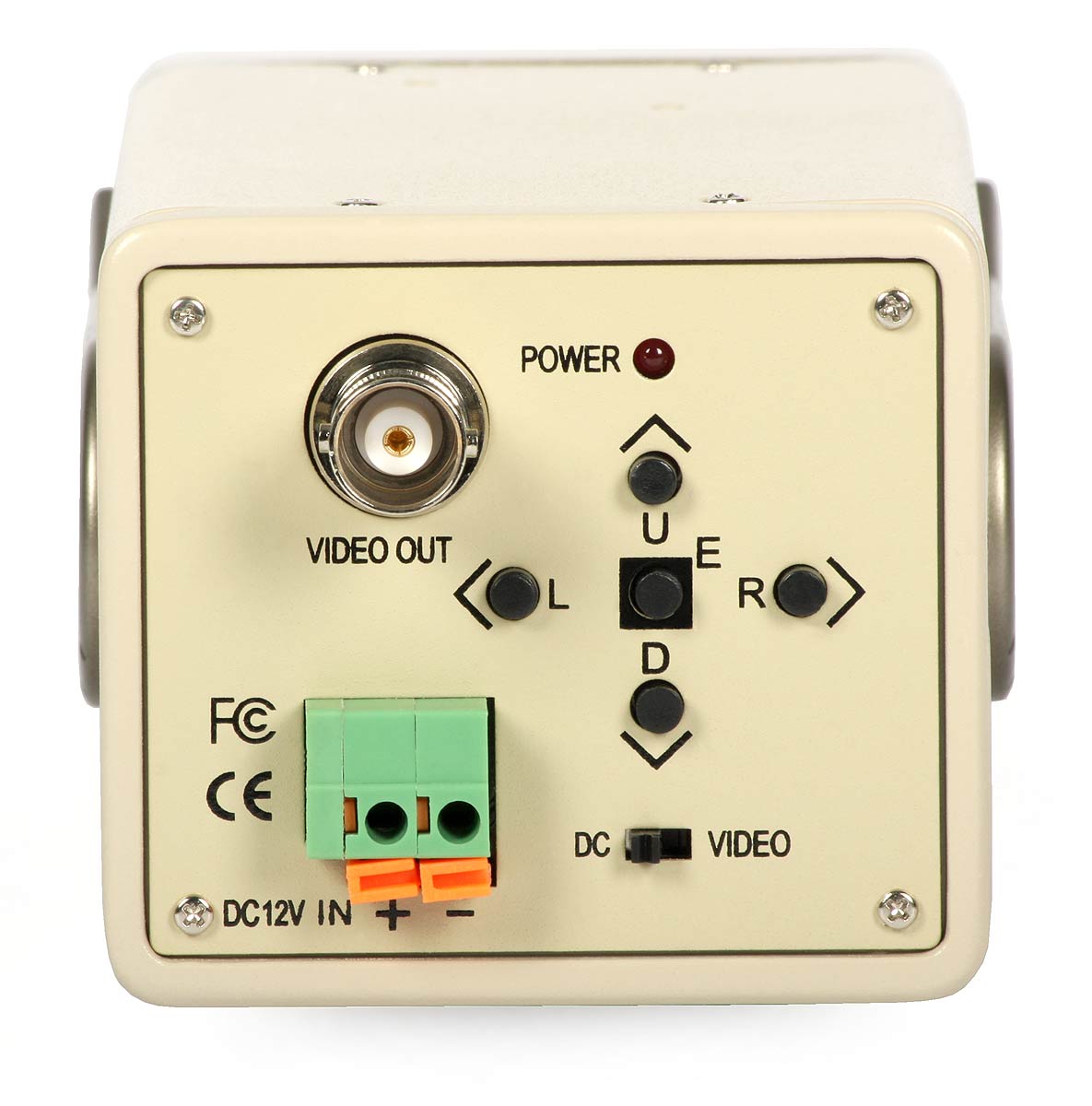

Rear view
The u-cam 600 M11185 camera is equipped with very sensitive 1/3'' SONY Super HAD II CCD (B/W: 0.01 lx) with horizontal resolution of 600 TVL. It renders true colors and provides crisp video with sharp edges of objects. The camera performs very well in difficult lighting conditions.
The high sensitivity of the camera ensures color images in low light, without a visible effect of "snow". In very low light the camera switches into B/W mode and operates with increased sensitivity. The camera is not designed for use with IR illuminators (due to fixed IR filter).
- Highly sensitive Sony Super HDD CCD II sensor with resolution of 795*596 pixels
Sony Super Had II ICX639AKA (on the right) - higher sensitivity compared to the predecessor
- Horizontal resolution of 600 TVL (color)
More detailed images
- 2D DNR (digital noise reduction)
2D noise reduction improves the clarity of the image (on the right), while reducing the amount of data to save.
The lower parts show magnified fragments of the images.
The lower parts show magnified fragments of the images.
- HLC function
High Light Compensation - masks extremely bright areas such as car headlights
The camera parameters can be changed using the on-screen menu controlled by the keypad on the back of the housing.
The OSD menu contains the following settings:
- brightness
- contrast
- sharpness
- white balance
- electronic shutter speed
- AGC
- BLC
- DWDR (digital wide dynamic range)
- motion detection (4 zones with sensitivity levels)
- 8 privacy masks
- virtual parking lines
- negative image
- camera name
- type of monitor (LCD, CRT)
- reset to default settings
Specifications:
| Name | u-cam 600 |
| Code | M11185 |
| Image sensor | 1/3'' CCD Sony Super HAD II |
| Video standard | PAL |
| Effective pixels | 795(H)x596(V) |
| Horizontal resolution [TVL] | 600 (color) 650 (B/W) |
| Sensitivity (F1.2) | 0.1 (color) 0.01 (B/W) |
| S/N ratio [dB] | >48 |
| Electronic shutter [s] | 1/50...1/120000 |
| AGC | Yes |
| OSD menu | Yes |
| WDR | Yes (DWDR) |
| BLC | Yes |
| Day/night | Yes |
| DNR | Yes (2D) |
| Privacy zones | Yes |
| Mirror image | Yes |
| Motion detection | Yes |
| IR illuminator | - |
| Lens | - |
| Viewing angle | - |
| Housing type | box |
| Housing dimensions [mm] | 130x60x60 |
| Vandal-proof implementation | No |
| Housing material | aluminum alloy |
| Operating temperature | -10°C...+50°C |
| IP rating | - |
| Connectors | video (BNC) power (terminal block) |
| Power | 12 VDC; 0.1 A |
| Power consumption | 1.2 W |
| Weight | 0.5 kg |
Cena s DPH
Sleva
Množství
2368,56 Kč
0 %
